Emissions from Data Transfer

As a sanity check on the total environmental impact of network infrastructure, this paper: The electricity consumption and operational carbon emissions of ICT network operators uses confidential information provided by network operators to produce an estimate of the total and per-subscriber emissions.

  • The total annual operational carbon emissions of the ICT networks are estimated to 169 Mtonnes CO2e for 2015. This corresponds to 0.53% of the global carbon emissions related to energy (about 32 Gtonnes), or 0.34% of all carbon emissions (about 50 Gtonnes).
  • The total annual operational electricity consumption of the overall ICT networks globally is estimated to 242 TWh for 2015 including both grid (215 TWh) and on-site generated electricity (27 TWh). The total corresponds to 1.15% of the total electricity grid supply.

The paper shows that electricity use and emissions per subscriber are relatively flat over the period 2010 to 2015 due to increased efficiency of the underlying technology (Moore’s law), and demonstrates that electricity use and emissions are not growing proportionately to data transfer, which grew dramatically over this period.

The paper calculates emissions per fixed broadband (37 kgCO2e/sub) and mobile (14 kgCO2e/sub) subscribers, with an average of 19 kgCO2e per subscriber.

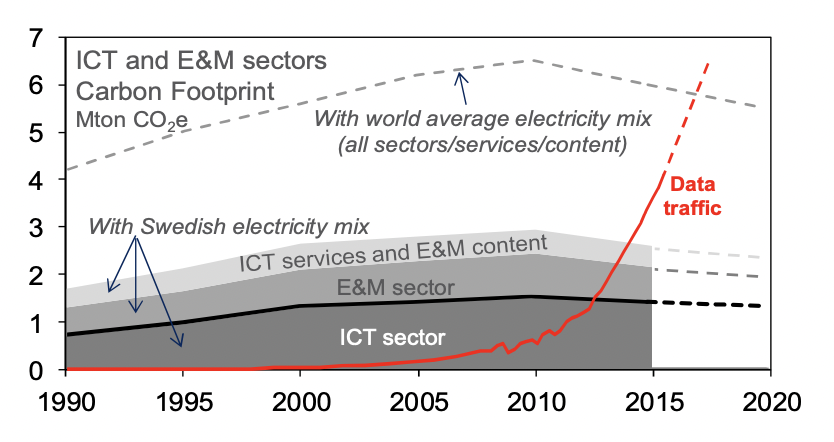

The same author, Jens Malmodin, produced a graphic showing the sources of power usage per user at the Science & Society Forum in Sweden in 2020:

These bottom-up numbers indicate that the majority of emissions from broadband users are fixed and change little based on data transfer, while mobile emissions are somewhat based upon data transfer (presumably because the access network uses energy to transmit more actively). An expansion of this analysis that compares to other assessments of emissions from network use can be found in IEA (2020), The carbon footprint of streaming video: fact-checking the headlines, IEA, Paris

​
References and articles:

​
Power usage by bandwidth (Conventional Model)

The ideal data source would factor in:

  • Relative use of fixed connections, 3G, 4G, and 5G on a per-country basis
  • The exponential growth of data use, ideally split between streaming and non-streaming use cases

The SRI methodology (the latest “official” industry source) uses ADEME/Negaoctet calculations based on 2020 data in France, though unfortunately are not time-adjusted or adapted to different markets.

​
Power usage by time and bandwidth (Power Model)

Per Carbon Trust:

This white paper also presents a power model approach, which uses a marginal allocation methodology, where a baseload power is allocated per user, and a marginal energy component is allocated related to the data volume used. The power model approach recognises that the dynamic relation of energy to data volume in a network is very flat – i.e. there is a high fixed power baseload which does not vary in relation to the data volume, with only a small increase in power consumption in response to the data consumption.

​
Fixed Network

Assumptions (see Table 5 in Carbon Trust doc):

  • We diverge from Carbon Trust in that we assume one active device per household member vs their assumption that half of all user devices are active - this represents multiple people watching the same TV, for instance, or streaming on a maximum of one personal device at a time (in other words, we set A = 1 and Qd = 1)
  • We also do not include an idle factor as it does not make sense to us to include all of the other uses of the network, many work-related like video calls, in our calculation (in other words, we set F = 1)
  • We assume an average household size of 2

Coincidentally, these assumptions basically tie out to the same number as Carbon Trust - 3x the user factor times 1/3 the idle factor

Allocated Fixed Network Energy (Afn) = 6.5W / 2 users = 3.25W

Dynamic Fixed Network Energy (Dfn) = (0.03W/Mbps + 0.02W/75Mbps) = 0.030W/Mbps

Allocated Home Router Energy (Ehr) = 10W / 2 users = 5W

CDN = 1.3W

Fixed Network Energy = 9.55W + 0.03W/Mbps

​
Mobile Network

We use the same numbers as Carbon Trust

Mobile Network Energy (Amn) = 1.2W + 1.53W/Mbps

​
Data transfer embodied emissions

The SRI methodology includes embodied emissions data from ADEME/Negaoctet, which seem reasonable.

​
Handling unknown networks

The SRI methodology suggests a ratio of 90% fixed to 10% mobile. However, this ratio is not representative globally. The ITU publishes research on fixed and mobile traffic by country. This indicates that for 2022 the weighted average of global traffic was 23.6% mobile. However, this research notably omits the US which is likely similar to other advanced economies in the 5% range, so we have added this to the dataset as an estimate (along with the 10% France number for SRI consistency).
